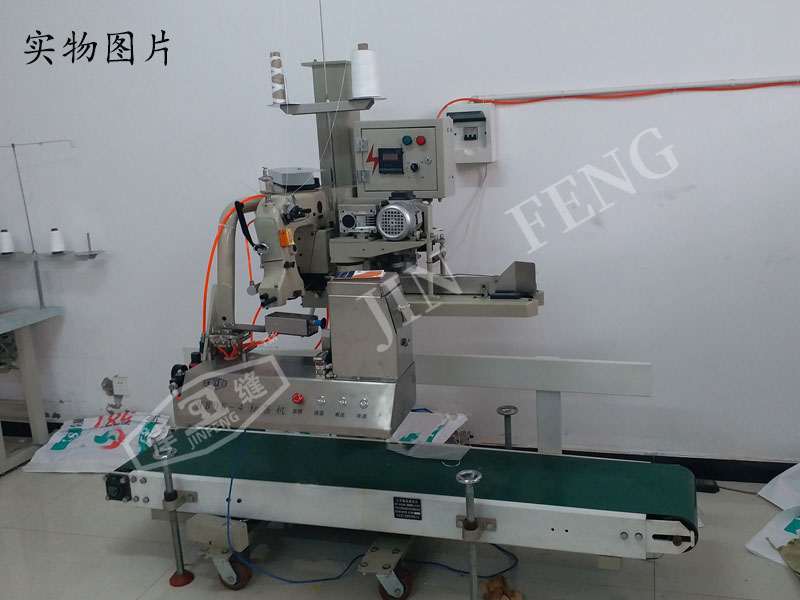

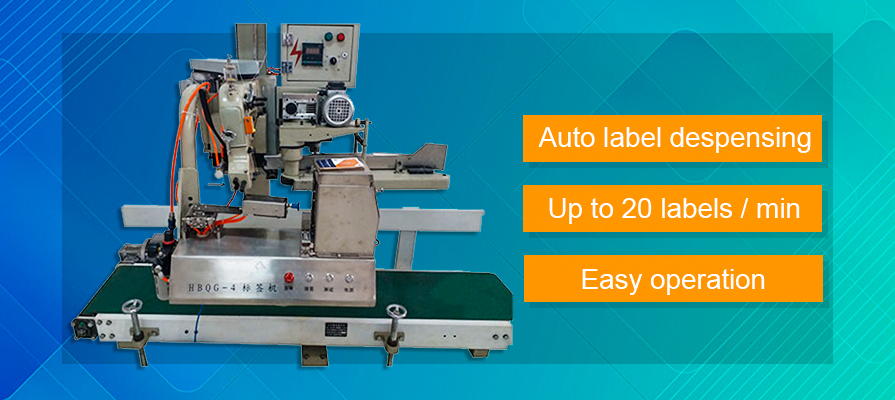

HBQG-4 Automatic Label Dispenser
    Label Dispenser for individual paper labels. Labels are automatically fed into the bag feed-in device and sewn to the front side of open bags.

    Output, up to 20 labels / min.
    Dimensions of labels, min. height 80 mm, max. height 135 mm. Min. width 40 mm, max width 60 mm.
    Capacity of label magazine, up to 300 pcs (depending on label thickness).
    Installation of label dispenser, in front the conveyor.
    Voltage is 220 V, single phase.
    Air supply, compressed air 6 bar.
    Operating height 500 mm minimum.
    Operating height 1700 mm maximum. Other operating heights upon special request
    Size of label dispenser, 709 *267* 519mm


    IMPORTANT:  APTITUDE TEST OF LABELS ESSENTIAL!

    Preferable applicable in long feed-in device.
