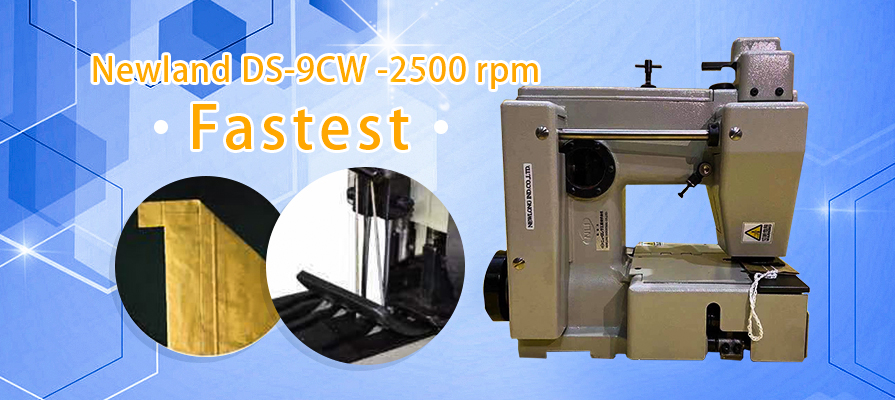

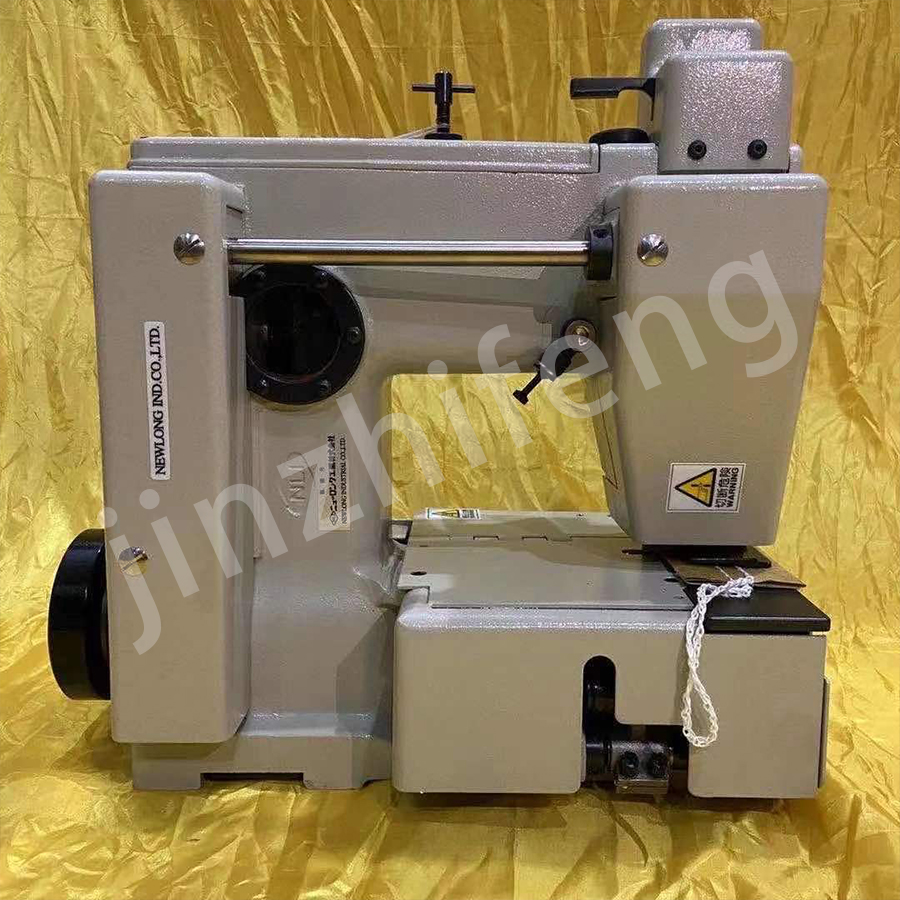

DS-9CW High Speed Sewing Machine - Bag Closing Machine

product description

DS-9CW high-speed sewing machine is the fastest double-needle four-thread bag-mouth sewing machine in the international market (2500 rpm). Joining with the high-speed bag production line can make the speed of the conveyor reach 25 m/min. It is suitable for sewing various bags filled with materials. The rotating parts are well balanced. The unique and simple closed OIL-GUM lubrication system can prolong the service life of the moving parts, reduce the vibration and noise, and reduce the maintenance cost.
High-speed (2500 rpm), multi-functional sewing machine head. Because of the good rotation balance, it is not easy to produce vibration, which makes the high-speed operation have good stability. It is most suitable for high-speed automatic packaging production line with transmission speed of 25m/min. The oil tank type oil circulation system is closed, so the service life of the driving parts is longer, and the maintenance cost can also be reduced. Every product is protected by dust control measures. Loading pneumatic cylinder top and bottom cutter.

Technical Parameters

Top speed	2,500rpm
stitch type	Double-line chain trace
Stitch distance	7-10.5mm
Scope of application	Paper-plastic composite bags, color printing bags, film bags, paper bags, three-in-one bags, cement bags, lining bags, etc.
Slit capacity	6-Layer Paper Bag with Edge Paper
scissors	Fully automatic
Needle type	DR-H30 #26
oil supply system	Automatic fuel supply
weight	41.0kg
