GK35-8/8A Double Needles Sewing Machine

classification： GK35-8 GK35-8A

product description

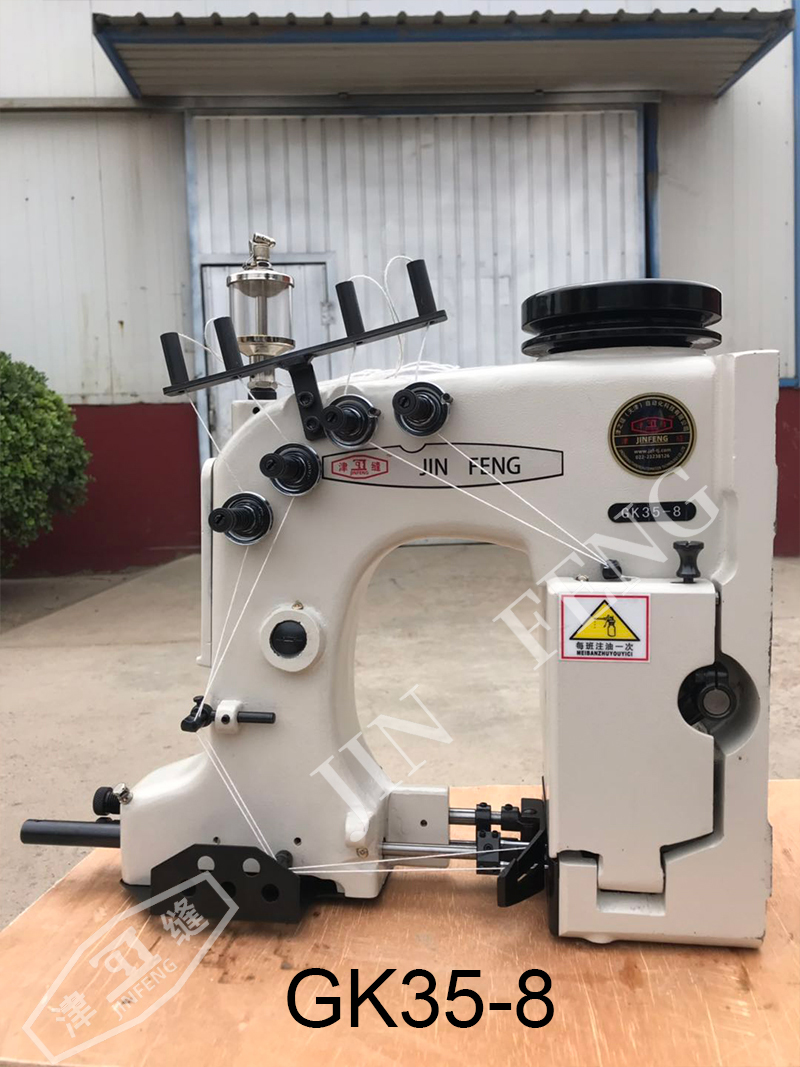

GK35-8 Double Needles Bag Closing Machine：Two-needle machine for plain closing of all kinds of filled bags，this model is a variation of Model GK35-2C, and is recommended to prevent leakage of the product by providing strong double seams.
1.   Start-stop: actuated by foot switch of column

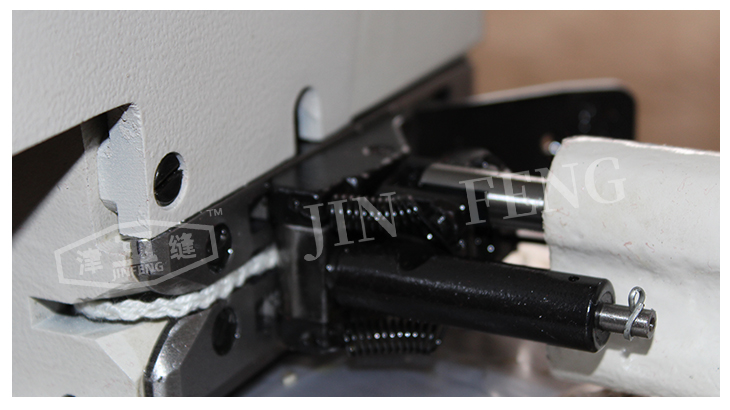

2.   Thread chain cutter: by continuously driven nibbler knives
3.   Standard needle: DN*2#
4.   Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
5.   Needle distance: 6 mm, staggered
6.   Speed: up to 2000 RPM, depending on sewing material and operation
7.   As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.

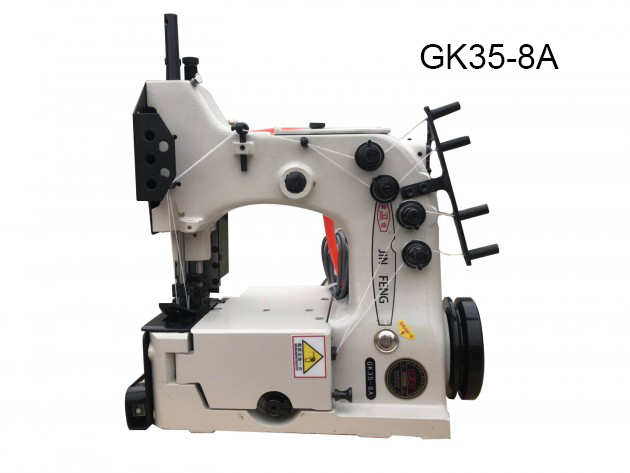

GK35-8A Double Needles Automatic Bag Closing Machine: The same with GK35-8 expect that equipped with photoswitch and electro-pneumatically operated scissors which can produce automatic start-stop and automatic thread cutting similar with GK35-6A.

Technical Parameters

Speed (max.)	2000r.p.m.
Sewing thickness	8mm
Stitch length	6.5-11mm
Needles distance	6mm
Stitch type	double threads chain 401
Thread	cotton, polyester 21S/5,21S/3
Presser foot lift	11-16mm
Needle type	DN*2#
Pulley diameter	φ 114mm
Power	370w
Weight	35KG
Dimension	50cm * 50cm * 35cm
