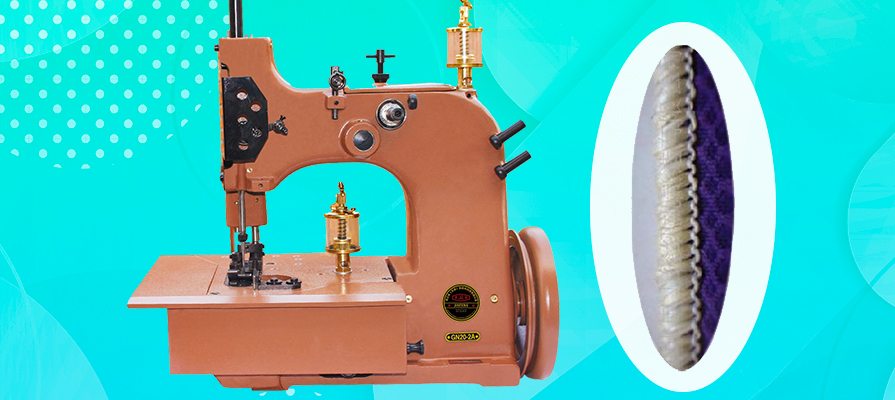

GN20-2A/3A Carpet Binding Machine

product description

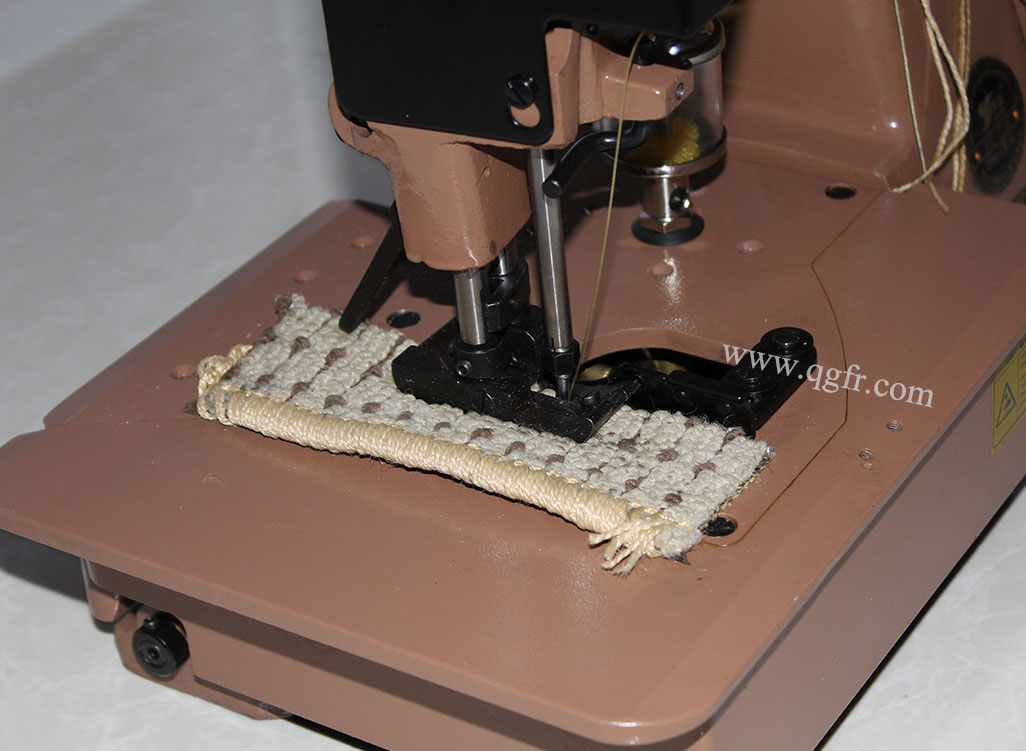

GN20-2A/3A Carpet Binding Machine: Plain Feed, Flat Bed, over-seaming stitch machine designed in particular to sew on thick carpets and rugs. Heavy presser foot and feed-dog mechanism gives the machines greater feeding power than other lightweight machines in the market. This also helps achieve smooth operation even when sewing on heaviest of materials.

GN20-2A: single needle, double threads;
GN20-3A: single needle, three threads;

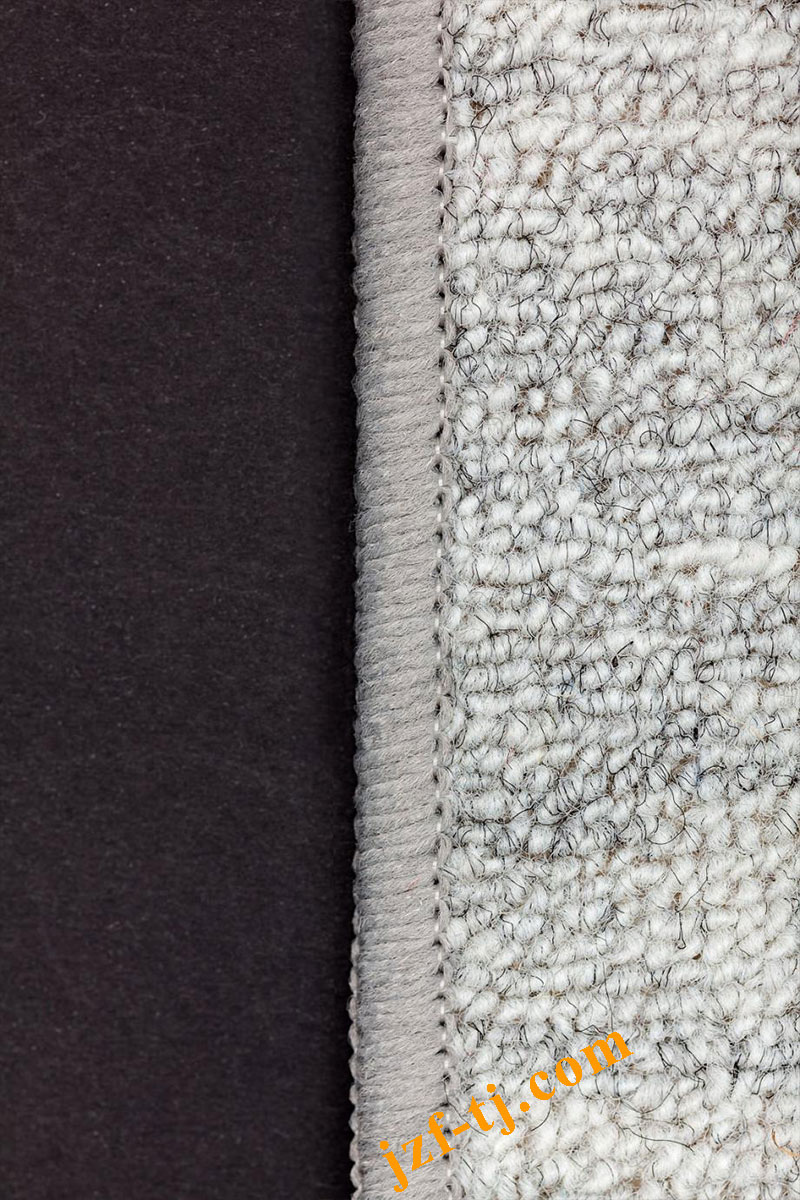

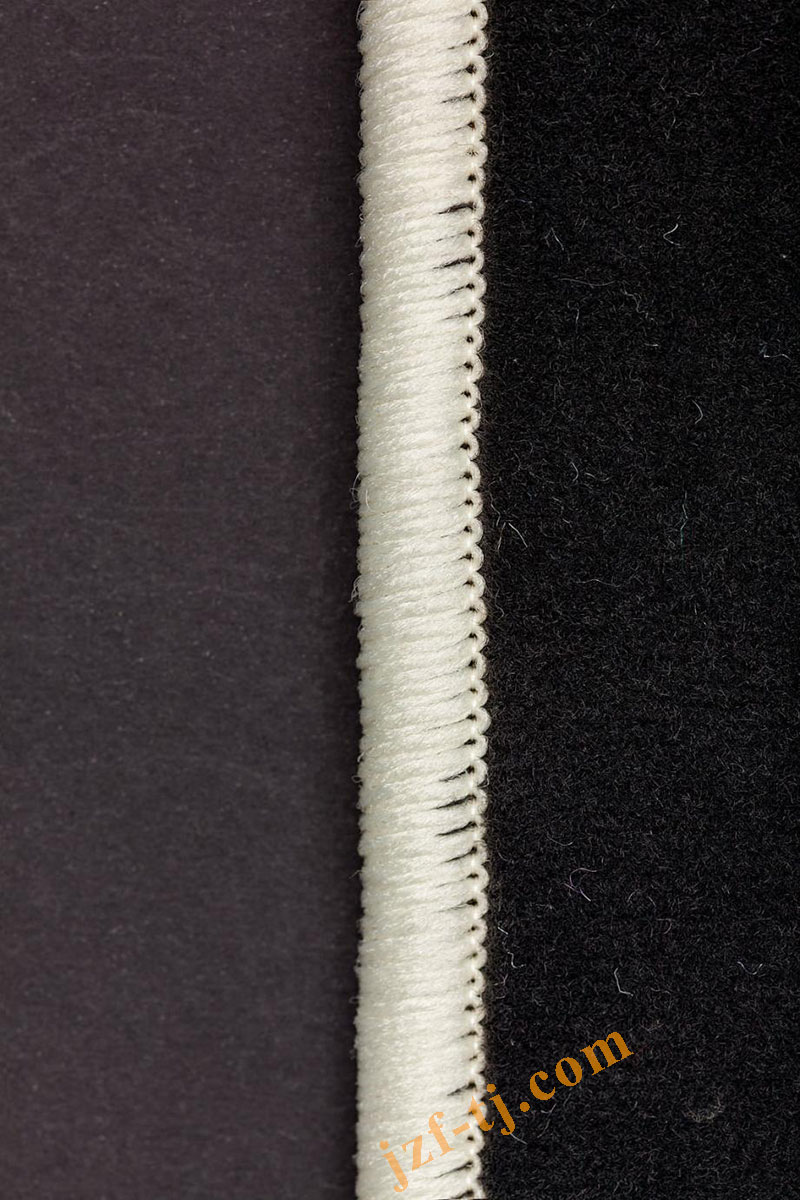

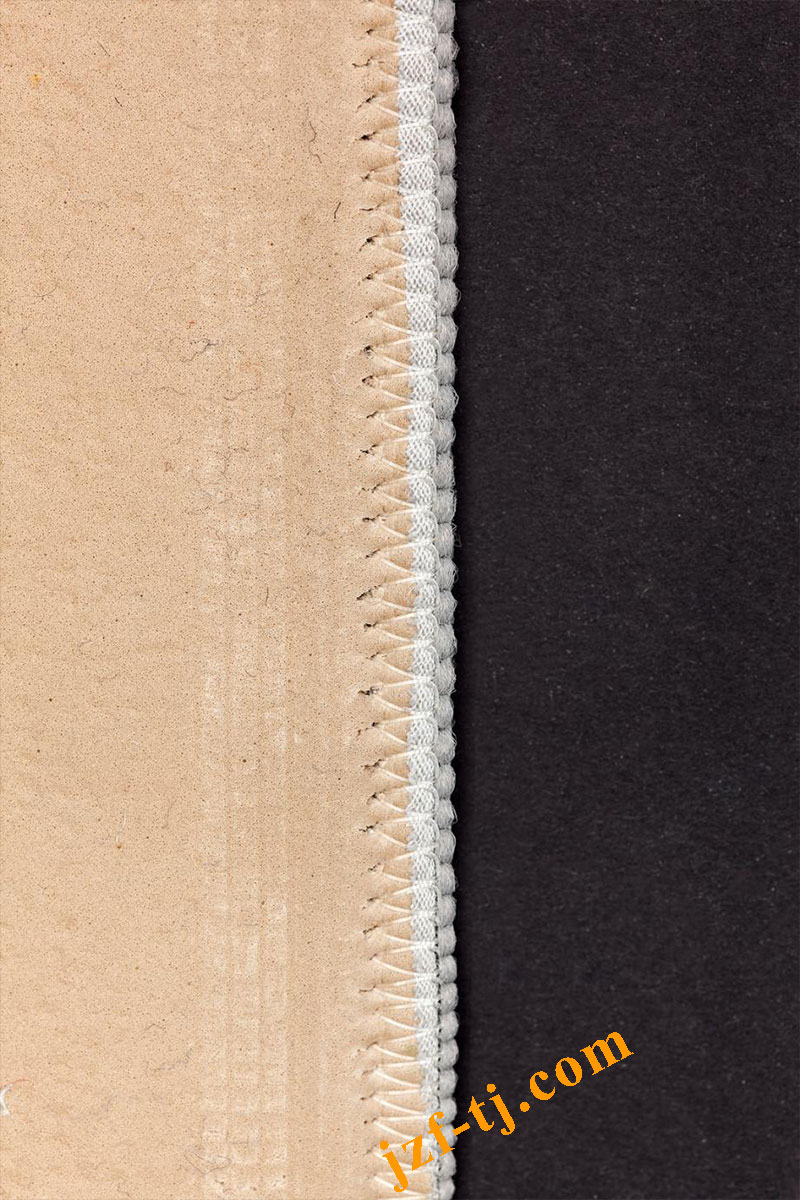

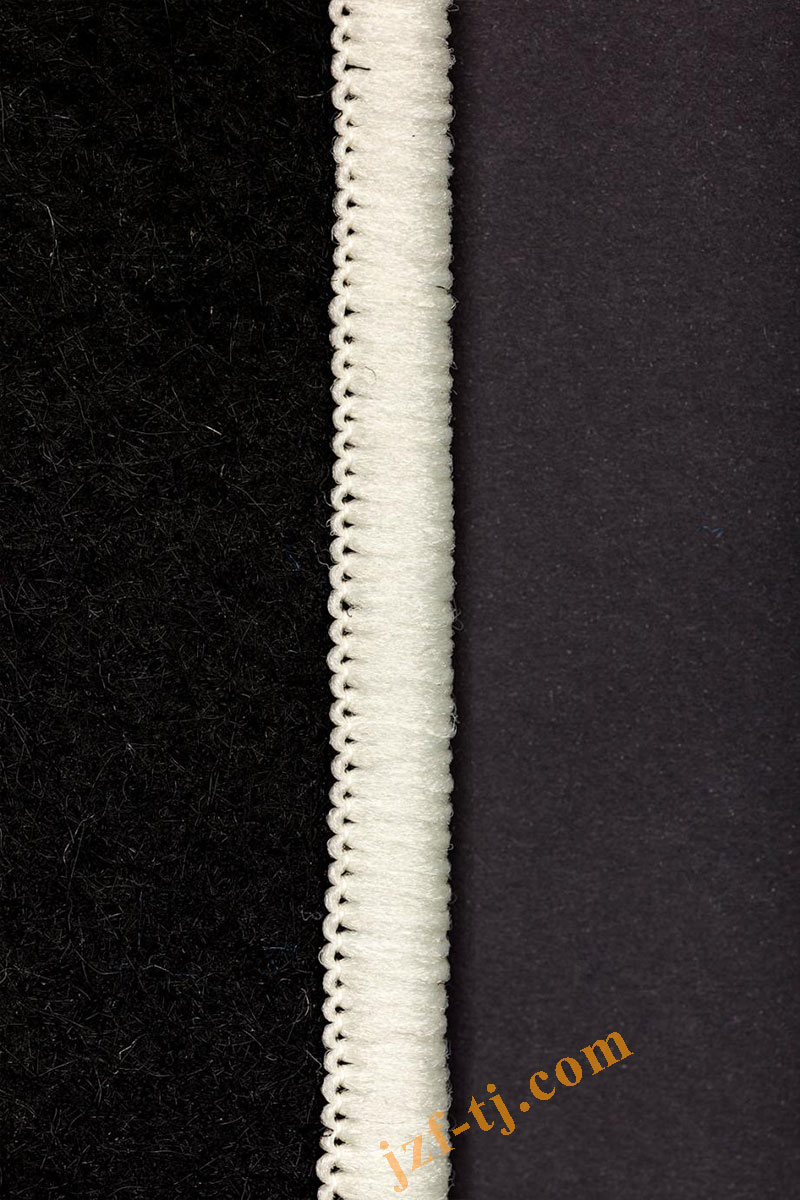

        For decorative overedging of carpets, rugs, automobile carpet, etc;
       Needle: 1;
       Curved line sewing and small circles are available;
       Stitch range: 2-4mm;
       15mm overedge width (10mm and 18mm is available)
       Max. speed: 1400rpm; Material thickness: 8mm

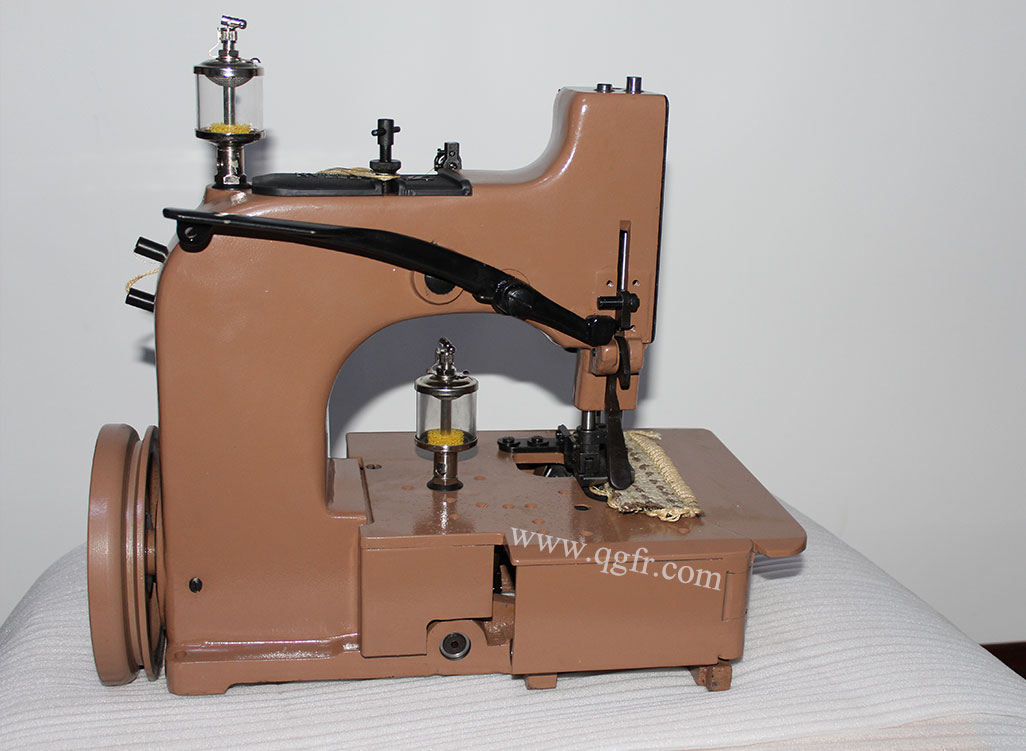

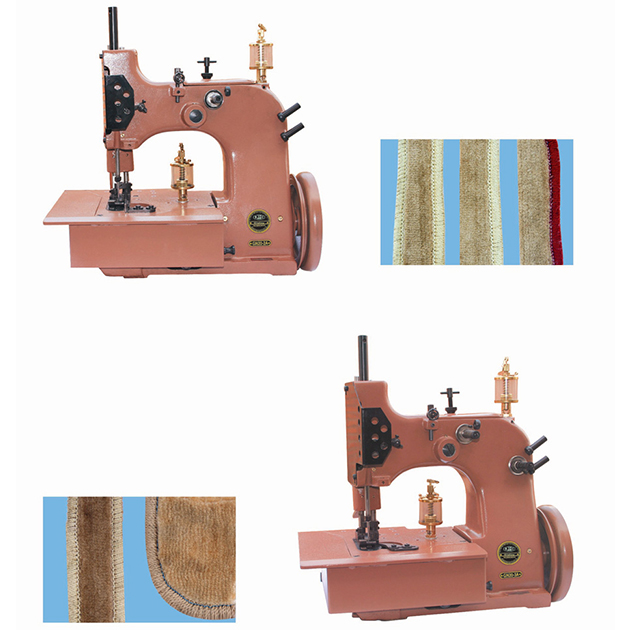

GN20-2A Front	GN20-2A Back


GN20-3A Front	GN20-3A Back

Technical Parameters

Speed (max.)	1400r/min
Sewing thickness	10mm
Needle type	80800*250#
Overedge width	10-15mm
Power	370W
Net weight	35kg
Dimension	445×245×375mm
