DS530 auto sewing machine for FIBC Inlet&Outlet

product description

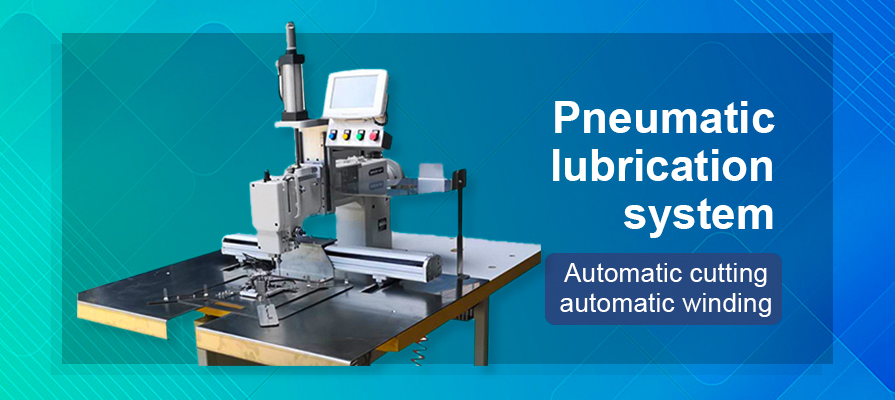

This machine is the latest design of the special thick material pattern machine that can be lifted by Zhiqiang company. The operating space under the arm can reach 420 millimeters, and the head lifting reach to 100 millimeters. Easy to collect and release materials, innovative lifting structure and transmission structure design，When the nose gets steady and downward pressure, the sewing speed can reach 1200 revolutions / min. It has practical functions such as automatic trimming and automatic winding, which makes sewing work more stable.This machine adopts imported five times super large rotary shuttle, and the shuttle core line is large.The sewing efficiency can also be ensured when using very thick high strength polyester sewing thread.Adopting step-by-step closed-loop computer control system, which can be programmed freely, and can design, download and store new patterns at any time according to customers' requirements, can save labor and greatly reduce the dependence on skilled workers.Adopt pneumatic lubrication system to reduce maintenance time and extend machine service period.

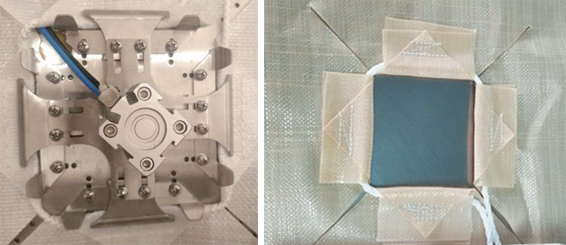

The production fixture is specially designed for the sewing links of the inlet and outlet of the container bag, which can easily sew the "petal" part of the container bag.

The new partnership service plan ensures that the product has no worries in the use process.

Technical Parameters

Model ：	367-SJ4020
Optional scope of sewing：	X axis 400mm,Y axis 200mm
Maximum sewing speed：	1200rpm
Set speed：	100-1200rpm
Stitch length：	0.1-12.7mm
Storage sewn data	520 patterns (internal storage)
Needle bar stroke：	56mm
Needle：	DDX1 27#
Presser plate lifting：	20mm
Shuttles	KRT-132
Wrie cutting	Mechanical shearing line
Stitch	600D to 1500D
Lubrication system	Pneumatic automatic lubrication
lubricant	silicone oil
Controller type	SC44X
Power supply	200V-240VSingle-phase
