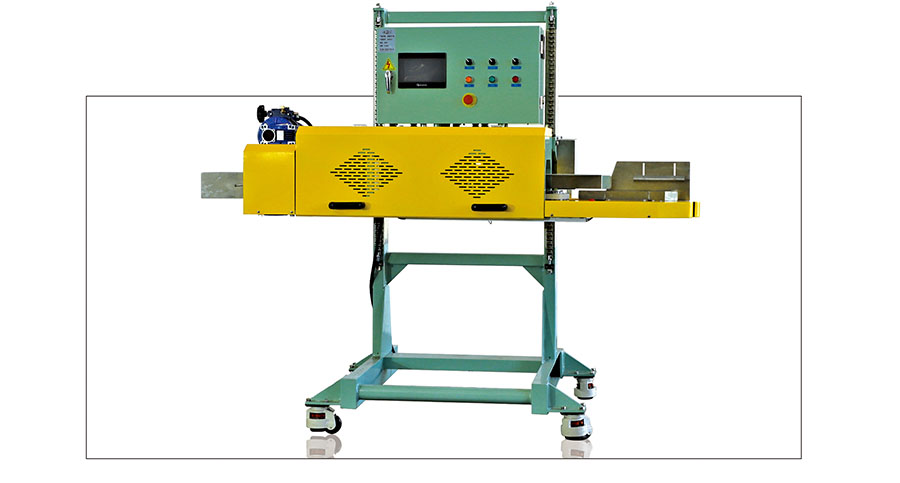

QHS-331 automatic sealing machine

product description

JinZhiFeng brand QHS-331 automatic sealing machine can seal thicker PE or PP plastic bags, plastic composite bags, aluminum-plastic composite bags, and woven bags with PP or PE plastic bags with high quality, high efficiency and continuous sealing. Le is widely used in the packaging of chemical raw materials, pharmaceutical raw materials, grain, food, feed and other industries that have strict requirements on the sealing degree and firmness of the bag mouth.

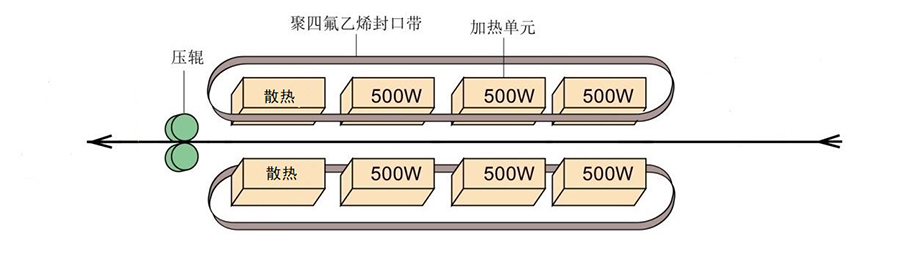

Working diagram:

Technical Parameters

oltage	Three-phase five-wire AC380V/50Hz
Seam speed	8.5m/min (7-12m/min can be customized)
Height from seam center to ground	Adjustable within the range of 750-145mm
Minimum height from material to bag mouth	Not less than 200mm
Temperature control range	50-200℃
Ambient temperature	5-35℃
Total power	5KW
