GK35-2CS/6AS Extra Heavy Duty Bag Closing Machine
product description
GK35-2CS Extra Heavy Duty Bag Closing Machine: Single needle machine for closing of all kinds of filled bags made of extra heavy duty materials such as multi-wall paper, PP/PE woven cloth. It is suitable for film coated bags with “M” edge and bags which is fold over before sewing. The lobbing can be avoided in film coated bags sewing. Equipped with mechanically operated continuously running thread chain cutting knives, the operator has to guide the thread chain between these knives for cutting the thread chain at the end of the seam.
1.    Start-stop: actuated by foot switch of column

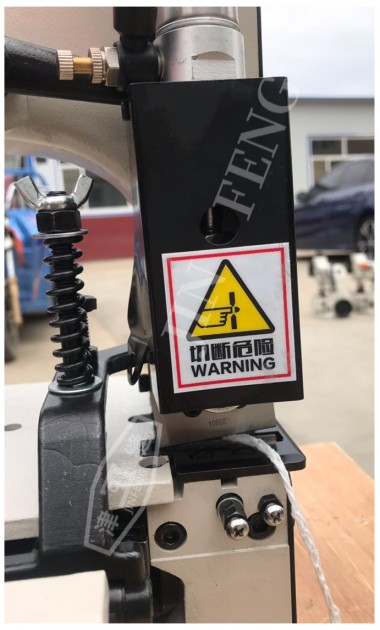

2.    Thread chain cutter: by continuously driven nibbler knives
3.    Standard needle: 80800x 250#
4.    Stitch length: adjustable from 8-15 mm, standard setting 10 mm
5.    Speed: up to 2000 RPM, depending on sewing material and operation
6.    Net weight: 35Kg
7.    As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.

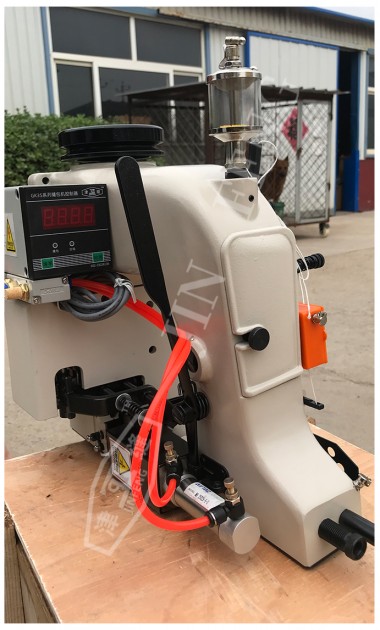

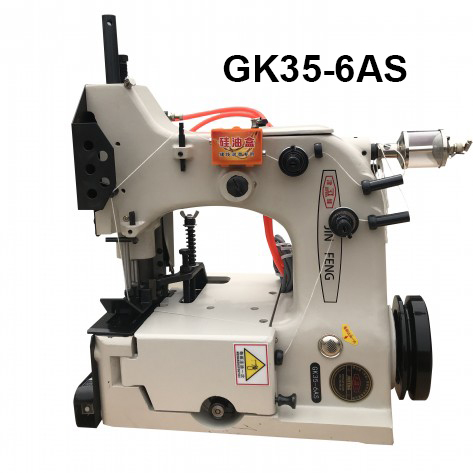

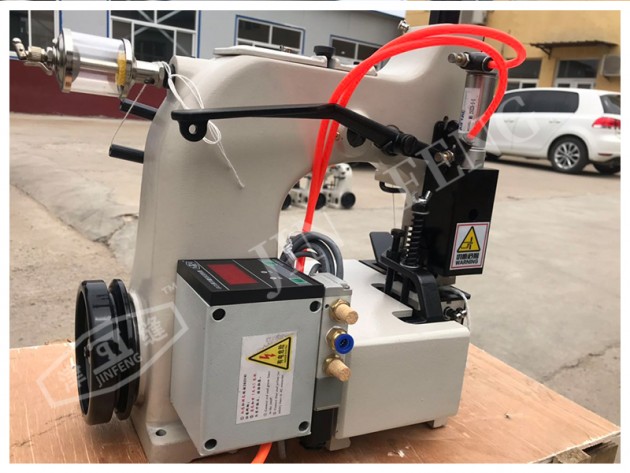

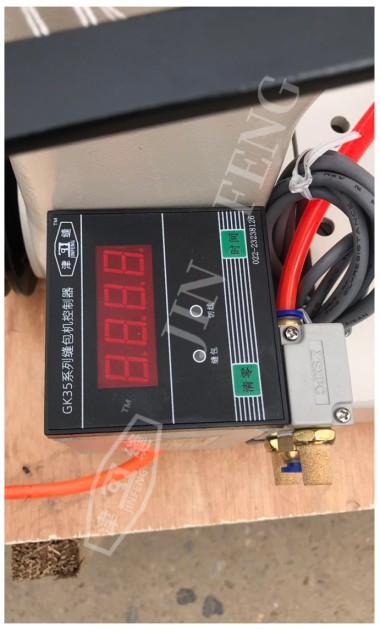

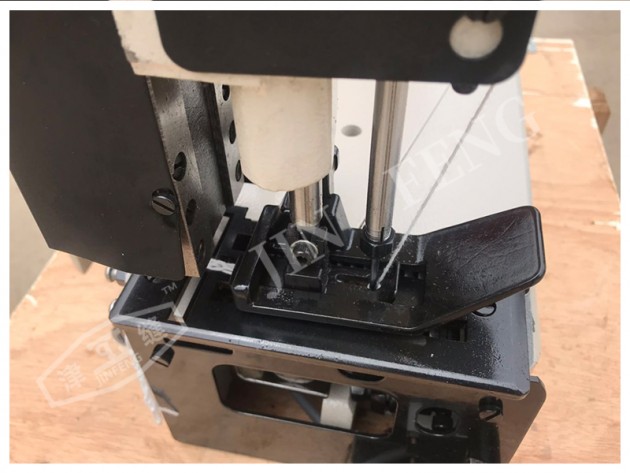

GK35-6AS Extra Heavy Duty Automatic Bag Closing Machine: Specially designed for extra heavy film coated bags. With synchronous feeding device, namely the presser foot and the feed dog works together, this model can effectively avoid lobbing. Equipped with sensors and electro-pneumatically operated scissors which can obtain automatic start-stop and automatic thread cutting. Auto counting the quantity of bags is incidental function.

Technical Parameters
Speed (max.) 2000r.p.m.
Sewing thickness 10 mm
Stitch length 8-15mm
Presser foot lift 0-16mm
Stitch type double threads chain 401
Thread cotton, polyester 21S/5,21S/3
Needle type 80800C×200#-250#
Pulley diameter Φ114mm
Net weight about 35KGS
Dimension 50cm * 50cm * 33cm
