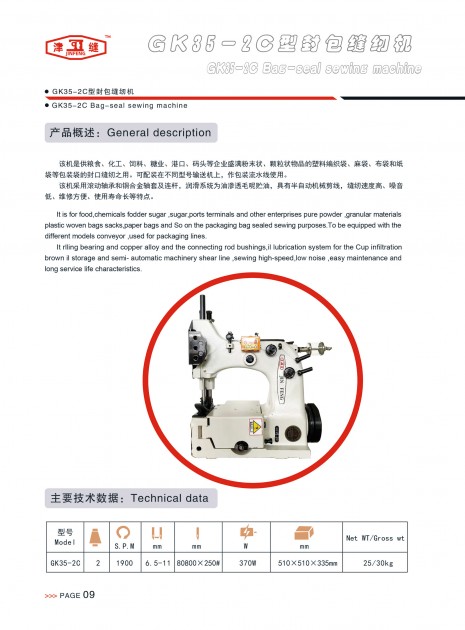

GK35-2C Bag Closing Machine

classification： GK35-2C GK35-2CF

product description

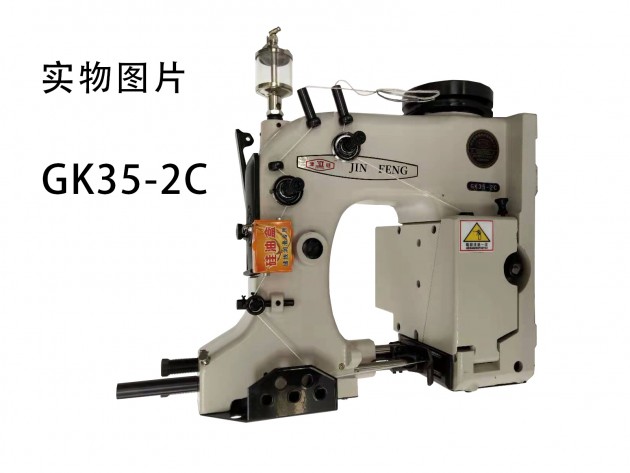

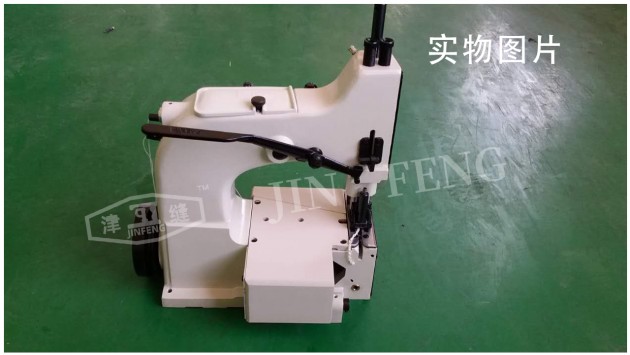

GK35-2C Bag Closing Machine: Single needle machine for closing of all kinds of filled bags made of multi-wall paper, PP/PE woven cloth, jute, cotton bags etc. Equipped with mechanically operated continuously running thread chain cutting knives, the operator has to guide the thread chain between these knives for cutting the thread chain at the end of the seam.

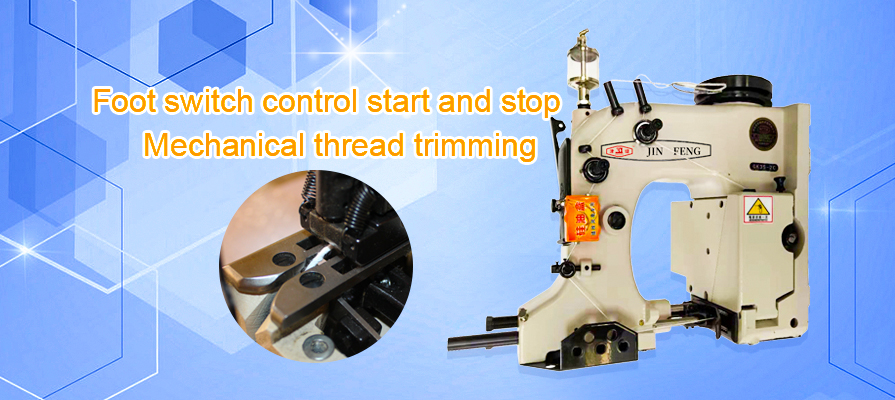

1.   Start-stop: actuated by foot switch of column

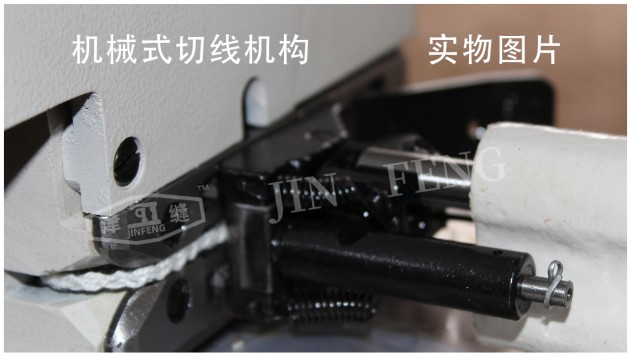

2.   Thread chain cutter: by continuously driven nibbler knives
3.   Standard needle: 80800x 250#
4.    Stitch type: Double threads chain stitch 401 (Single thread chain stitch is available)
5.   Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
6.   Speed: up to 2000 RPM, depending on sewing material and operation
7.   Net weight: 33Kg
8.   Package: Carton,500*500*330mm
9.   As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.

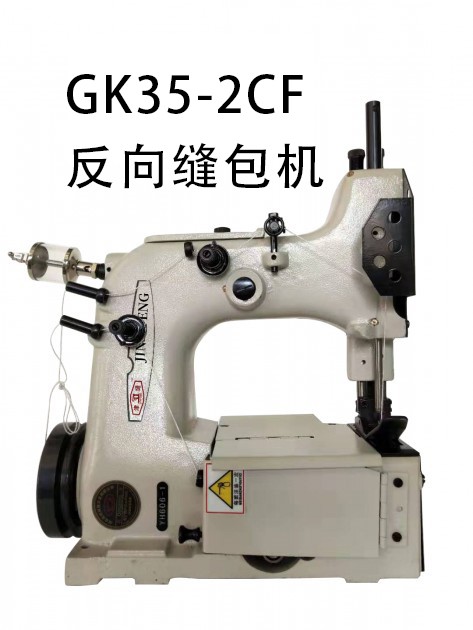

GK35-2CF is left hand sewing machine base on GK35-2C.

Technical Parameters

Speed (max.)	2000r.p.m.
Sewing thickness	8mm
Stitch length	6.5-11mm
Stitch type	double threads chain 401
Thread	cotton, polyester
Presser foot lift	11-16mm
Needle type	80800×250#
Pulley diameter	φ 114mm
Thread chain cutter	by continuously driven nibbler knives
Motor power	370w
Net weight	32KG
Package:	50cm * 50cm * 35cm
