81500CZ Fishing net-rope sewing machine

product description

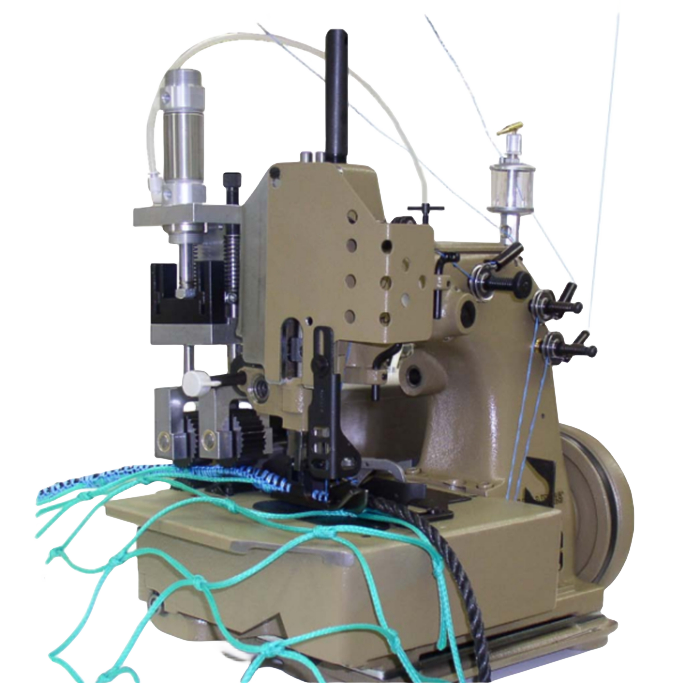

81500CZ Fishing net-rope sewing machine

Single Needle, Three Thread Overedging Sewing Machine

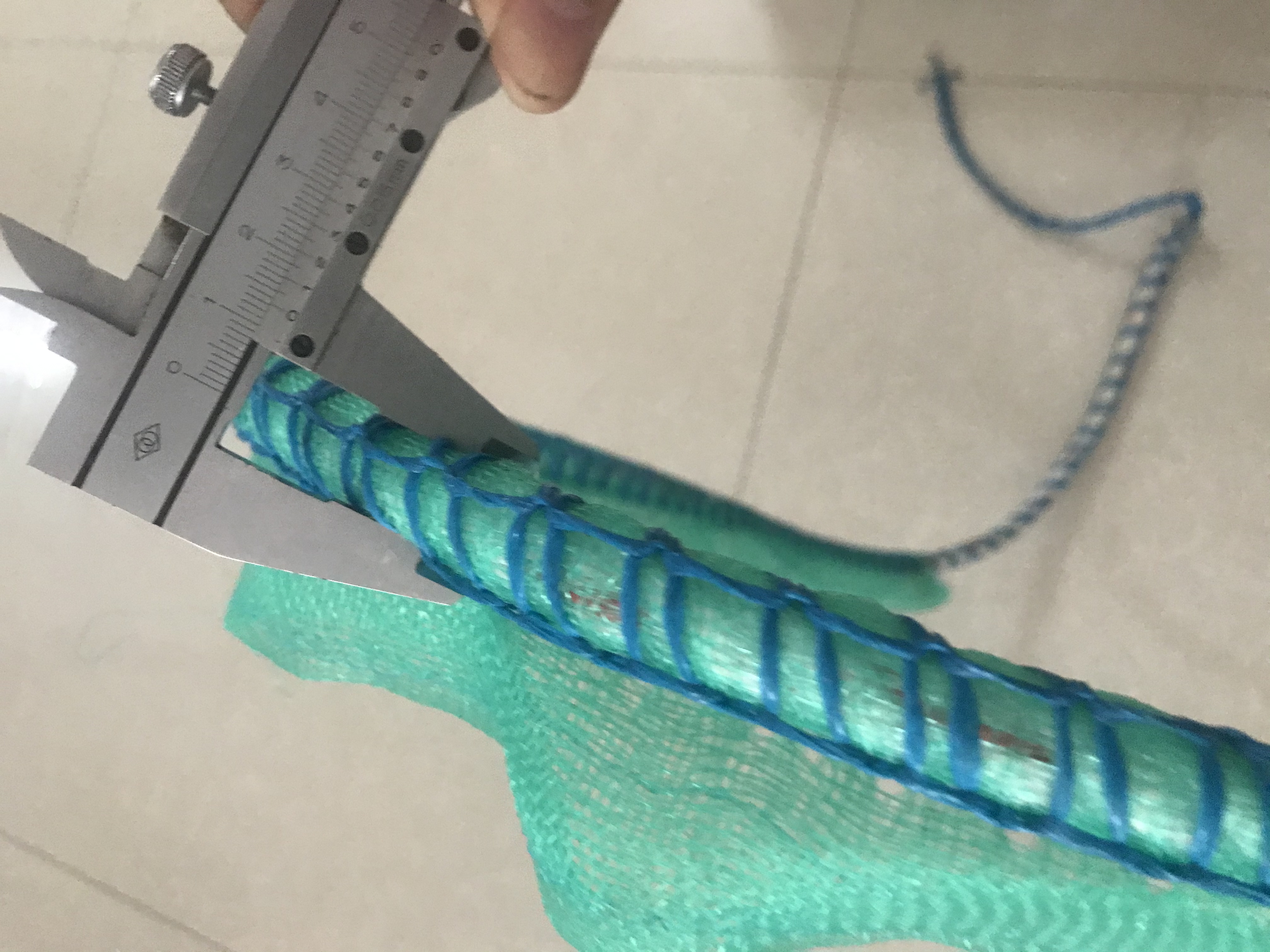

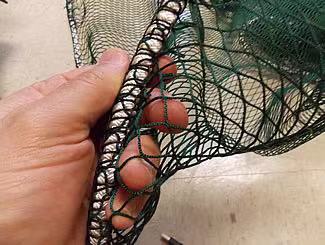

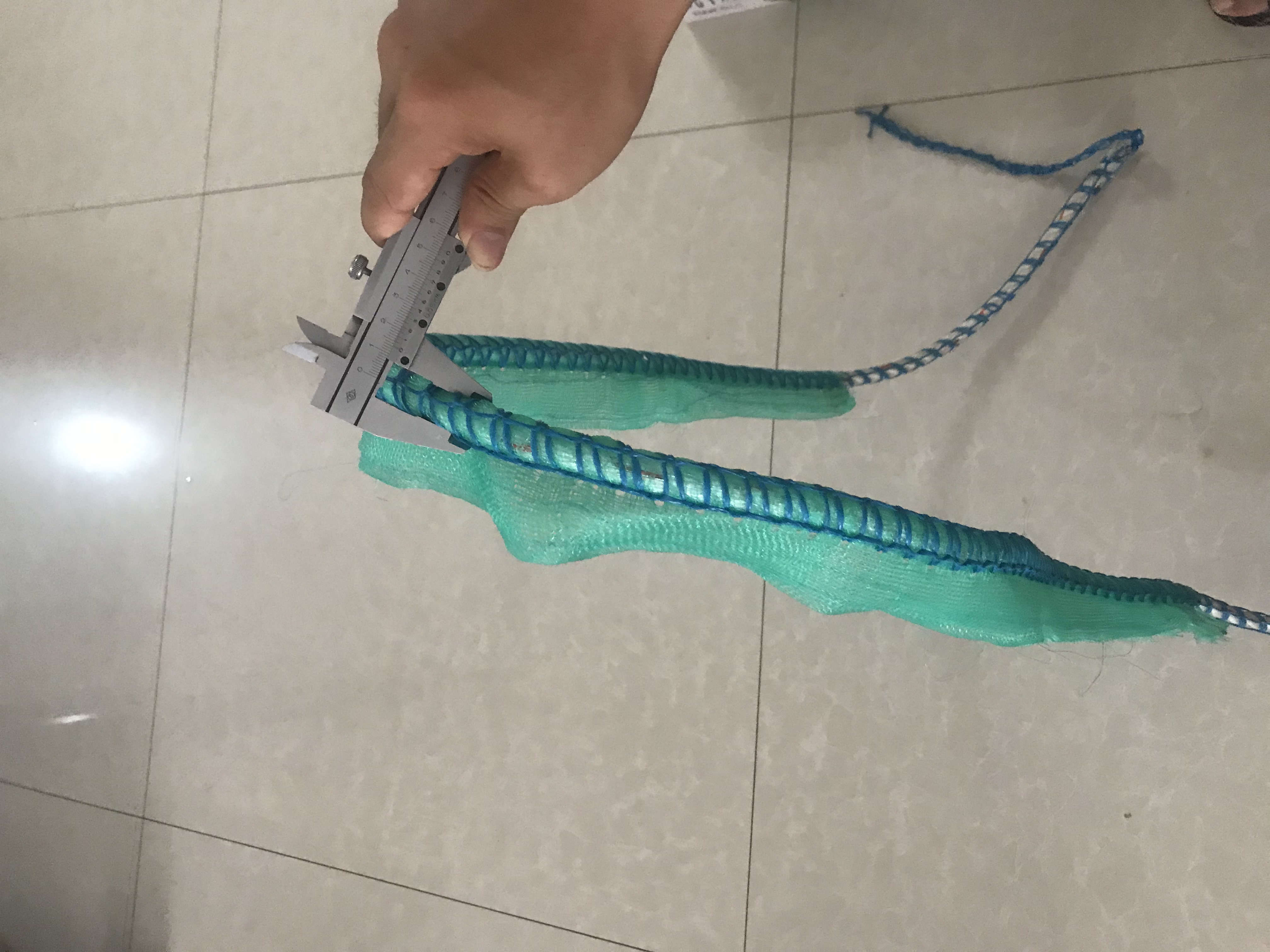

For attaching ropes from 5/32 inch to 15/32 inch (4 - 12 mm)- depending on the thickness of the net and size of knots - as border or tensioning rope to nets used for sports, protection or safety.For nets sewn parallel to the meshes, no feed dog is used and the throat plate has no slots (Standard version).For nets sewn diagonal to the meshes a feed dog and throatplate is included.Max. SPI 2.5 (10 mm).For joining nets larger than 45 mm mesh width.

Hand wheel pitch dia = 5 27/32 inch (150 mm)
Motor pulley pitch dia = 3 15/16 inch (100 mm)
Needle Thread: Net Yarn 210/24 or 210/30 PP Yarn, 4000 Denier
Looper Thread: Net Yarn 210/24 or 210/30 PP Yarn, 4000 Denier

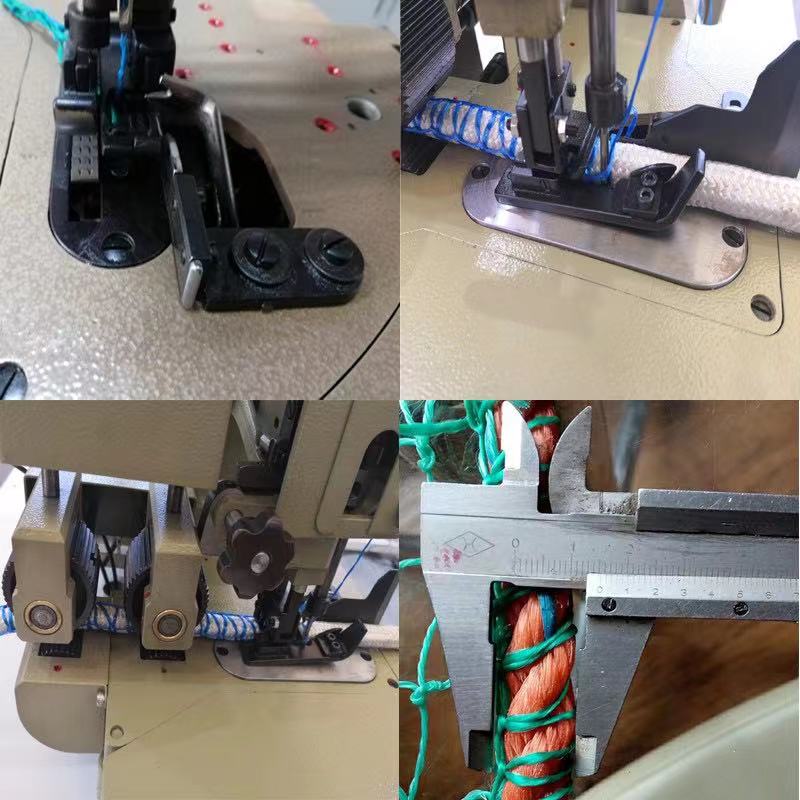

Feed: Intermittent stepper twin puller, two driven upper and one driven lower roller. Roller pitch 5 mm.Throat plate without feed dog slots for sewing parallel to the meshes. Stepper twin puller with throat plate and feed dog for sewing diagonal to the meshes.
Extra order parts for attaching ropes from 25/64inch to 5/8 inch (10 - 16 mm) - depending on the thickness of the net and size of knots:Throat plate 81524LA Cloth guide tongue 81503MA Edge guide 81303FLA Collar for looper 81537
.

Technical Parameters

Stitches/min	1200
Stitch range	2 - 5 SPI (4 - 12 mm)
Standard setting	2.5 SPI (10 mm)
Sewing Capacity	5/64 - 25/64 inch (2 - 10 mm)， 5/64 - 15/32 inch (2 - 12 mm)
Thickness of Ropes	4 - 12 mm / 10 - 16 mm
Standard needle	9853GA 300/120
Stitch types	504
Seam type	SSa-1
Needle Stroke	max. 2 51/64 inch (71 mm)
Needle (on request only)	9844GAN300/120
