GKS-232C heat sealing sewing machine
product description

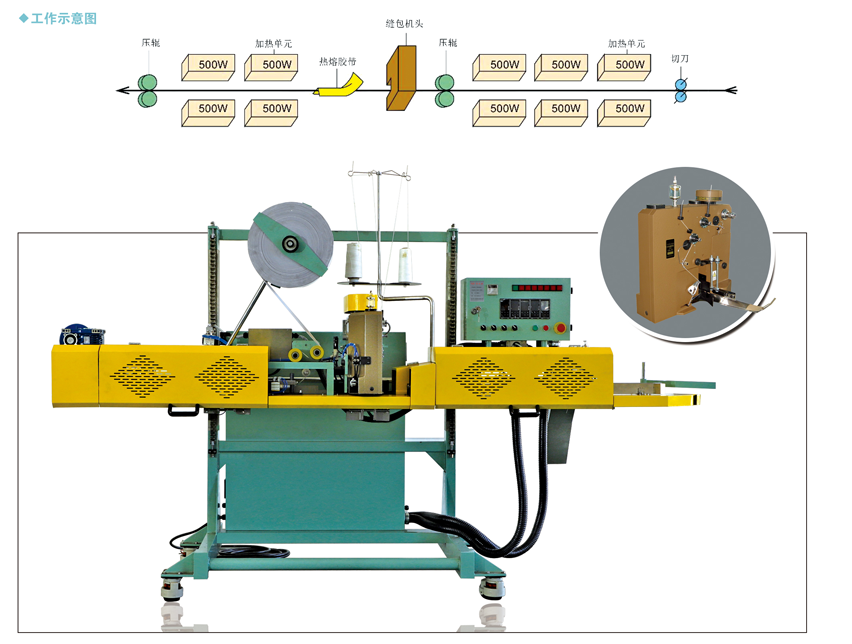

GKS-232C heat sealing sewing machine


QKS-13DC heat sealing sewing machine is suitable for sealing and sewing large bags such as  kraft paper bags, multi-layer kraft paper bags, paper plastic(composite inner PE) composite bags and paper woven composite bags with the packaging weight of 25-50kg in grain and chemical industries. The production capacity can reach 600-800 bags /hour.












Technical Parameters
Supply voltage AC380V/50Hz
Total power 6.5 KW
Transmission power 0.75KW
Sealing speed 8.5m/min (7-12m/min can be customized)
Height from sealing center to ground Adjustable within the range of 750-1450mm
Minimum height from material to bag mouth Not less than 200mm
Temperature control range 50—200℃
Ambient temperature 5---35℃
Gas contumption 3m³/h
