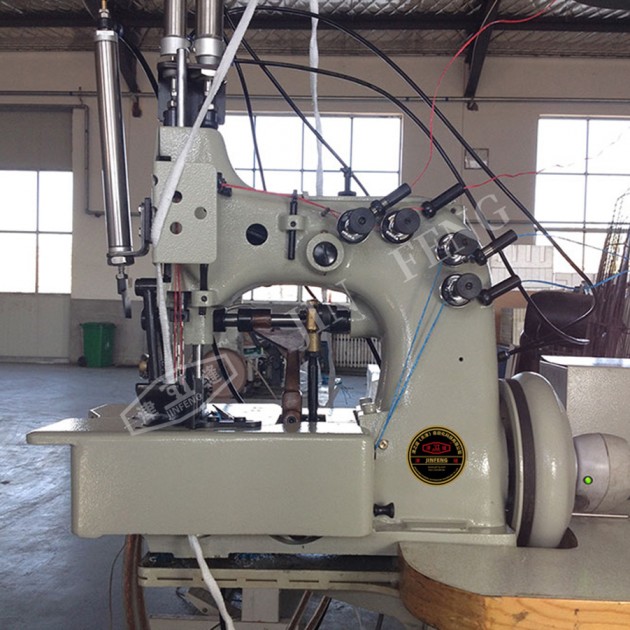

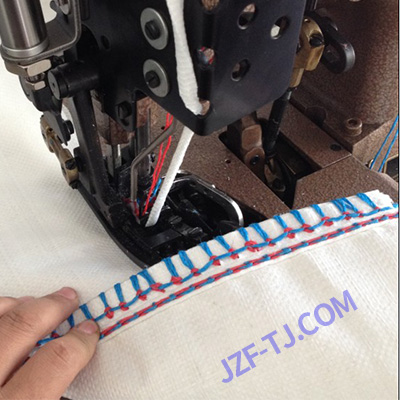

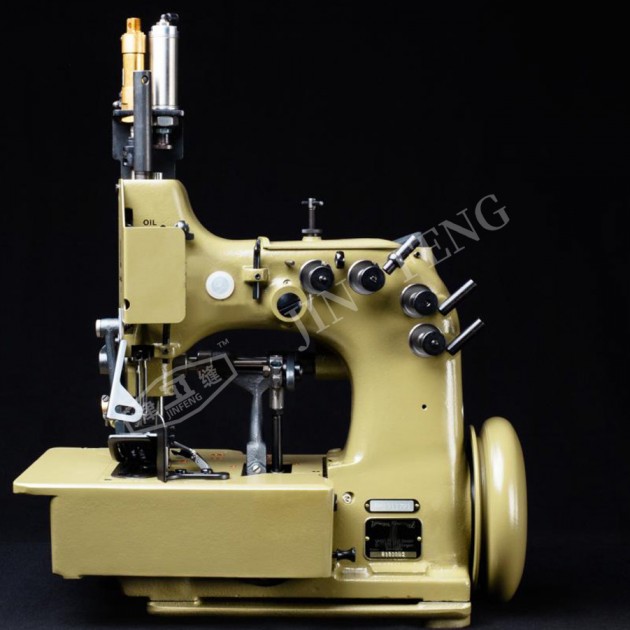

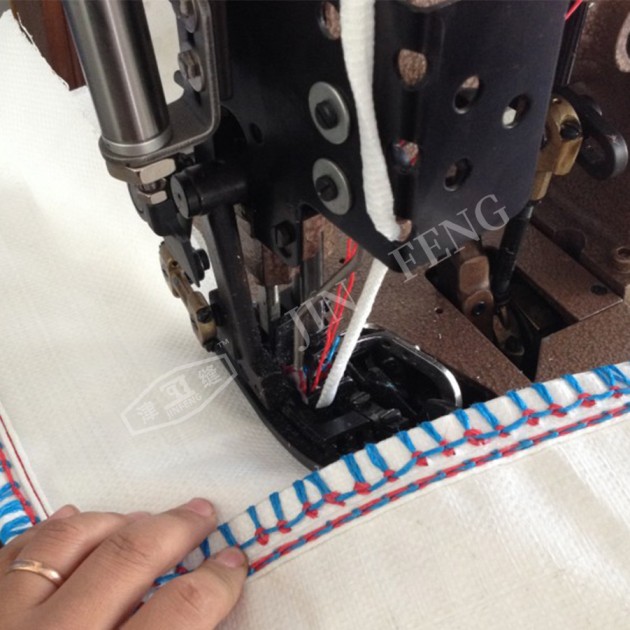

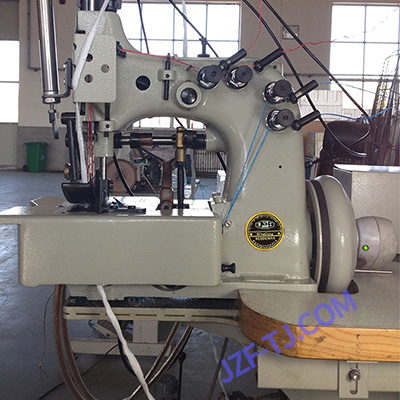

81300 Heavy duty FIBC sewing machine: Heavy duty two needle, four thread safety stitch machine with high needle throw. With top and bottom feed for matched seams on heavy bag fabric. Needle distance 5mm, overedge seam width 19 mm, seam width overall 24 mm. With guide for filler cord from the top and / or below for sealing the needle punctures of the left needle. Electro-pneumatically operated presser foot and upper feed dog lifter. Pneumatic presser foot spring. With built-in electro-pneumatically operated hot thread chain cutter left of the needle for separating the thread chain from below.
Stitches/min.：1400
Stitch range：6.00mm - 13.00mm
Standard setting：10.00mm
Capacity under presser foot：16.00mm
Thread chain and tape cutter：Hot thread chain cutter left of the needle
Bag material：PP-woven-fabric，PP-laminated woven-fabric，Felt
Lubrication：Manual lubrication
Standard needle：9853GA430/172
Stitch types：(401.502)
Feed type：Top and bottom feed
Closures：Plain seam
Bag types：Single loop bag，Double loop bag，Container bag，Baffle-Bag (Q-Bag)
81300 Heavy duty FIBC sewing machine
product description
